[2 CON] IC 74HC373 DIP-20 (74373 74HC373N)

Giới thiệu [2 CON] IC 74HC373 DIP-20 (74373 74HC373N)

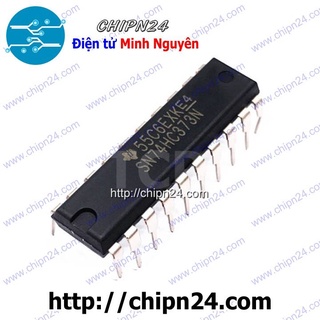

IC 74HC373 74HC373N DIP-20

74HC373N - Octal D-type transparent latch; 3-state DataSheet

General description

The 74HC373; 74HCT373 is a high-speed Si-gate CMOS device and is pin compatible with Low-power Schottky TTL. It is specified in compliance with JEDEC standard no. 7A.

The 74HC373; 74HCT373 is an octal D-type transparent latch featuring separate D-type inputs for each latch and 3-state outputs for bus oriented applications. A latch enable (LE) input and an output enable (OE) input are common to all latches.

The 74HC373; HCT373 consists of eight D-type transparent latches with 3-state true outputs. When LE is HIGH, data at the Dn inputs enters the latches. In this condition the latches are transparent, i.e. a latch output will change state each time its corresponding D input changes.

When LE is LOW the latches store the information that was present at the D inputs a set-up time preceding the HIGH-to-LOW transition of LE. When OE is LOW, the contents of the 8 latches are available at the outputs. When OE is HIGH, the outputs go to the high-impedance OFF-state. Operation of the OE input does not affect the state of the latches.

The 74HC373; 74HCT373 is functionally identical to:

74HC533; 74HCT533: but inverted outputs
74HC563; 74HCT563: but inverted outputs and different pin arrangement
74HC573; 74HCT573: but different pin arrangement
Features

3-state non-inverting outputs for bus oriented applications
Common 3-state output enable input
Functionally identical to the 74HC563; 74HCT563, 74HC573; 74HCT573 and 74HC533; 74HCT533
ESD protection:
HBM EIA/JESD22-A114-C exceeds 2 000 V
MM EIA/JESD22-A115-A exceeds 200 V
Specified from -40 Cel to +85Cel and from -40 Cel to +125 Cel
