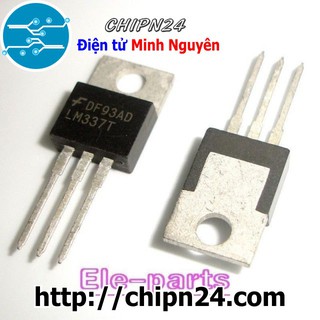

[2 CON] IC LM337 TO-220 (LM337T 337 1.2-37V)

Giới thiệu [2 CON] IC LM337 TO-220 (LM337T 337 1.2-37V)

IC nguồn LM337 LM337T TO-220 (1.2-37V)

LM337T - LM337 1.5A 3-Terminal Adjustable Negative Voltage Regulator

DESCRIPTION The LM137 series are adjustable 3-terminal negative voltage regulators capable of supplying in excess- 1.5Aover a -1.2 to -37V output voltage range. They are exceptionally easy to use and require only two external resistors to set the output voltage. Further, both line and load regulation are better than standard fixed regulators. Also, LM137 regulators are supplied in standard transistor packages which are easily mounted and handled. In addition to higher performance than fixed regulators, the LM137 series offer full overload protection available only in integrated circuits. Included on the chip are current limit, thermal overload protection and safe area protection. All overload protection circuitry remains fully functional even ifthe adjustment terminal is disconnected.

. OUTPUT VOLTAGE ADJUSTABLE DOWN TO Vref
. 1.5A GUARANTEED OUTPUT CURRENT
. 0.3%/V TYPICAL LOAD REGULATION
. 0.01%/V TYPICAL LINE REGULATION
. CURRENT LIMIT CONSTANT WITH TEMPERATURE
. RIPPLE REJECTION : 77dB
. STANDARD 3-LEAD TRANSISTOR PACKAGES
. EXCELLENT THERMAL REGULATION:
0.002%/V
. 50ppm/°C TEMPERATURE COEFFICIENT

Kết quả hình ảnh cho LM337T

Datasheet:
http://www.ti.com/lit/ds/symlink/lm337-n.pdf

..............................................................................
