Giới thiệu Mainboard MSI MAG B460 TORPEDO - Hàng chính hãng
CPU
Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA1200 socket 1 2
- Please go to intel.com for compatibility information
- Onboard graphics output are disabled when using the F SKU processors.
See supported processors
CHIPSET
Intel B460 Chipset
MEMORY
- 4x DDR4 memory slots, support up to 128GB 1
- Intel Core i7/i9
- Supports up to DDR4 2933 MHz
- Intel Core i5 (Below)
- Supports up to DDR4 2666 MHz
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports Intel Extreme Memory Profile (XMP)
- Please refer www.msi.com for more information on compatible memory.
See supported memory
EXPANSION SLOT
- 1x PCIe 3.0 x16 slot (From CPU, PCI_E1), supports x16 mode
- 1x PCIe 3.0 x16 slot (From PCH, PCI_E3), supports x4 mode 1
- 2x PCIe 3.0 x1 slots (From PCH)
- PCI_E3 will be unavailable when installing M.2 SSD in the M2_2 slot.
ONBOARD GRAPHICS
- 1x HDMI port, supports a maximum resolution of 4096x2160 @30Hz
- 1x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz
STORAGE
Intel B460 Chipset
- 6x SATA 6Gb/s ports 1
- 2x M.2 slots (Key M)
- M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices 1
- M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices 2
- Intel Optane Memory Ready (M2_2 only)3
- Supports Intel Smart Response Technology for Intel Core processors
- SATA1 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
- PCI_E3 will be unavailable when installing M.2 SSD in the M2_2 slot.
- Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID
Intel B460 Chipset
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
Intel B460 Chipset
- 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal USB 3.2 Gen 1 connector)
- 1x USB 3.2 Gen 1 5Gbps port (1 Type-C internal connector)
- 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AUDIO
Realtek ALC1200 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output
LAN
- 1x Realtek RTL8125B 2.5Gbps LAN controller
INTERNAL CONNECTORS
- 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
- 6x SATA 6Gb/s connectors
- 2x M.2 slots (M-Key)
- 1x USB 3.2 Gen 1 5Gbps Type-C port
- 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin water-pump fan connector
- 6x 4-pin system fan connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 2x 4-pin RGB LED connector
- 2x 3-pin RAINBOW LED connectors
- 1x TPM module connector
- 1x Clear CMOS jumper
- 1x RTD3 connector
- 1x TBT connector1
- Thunderbolt card need support RTD3

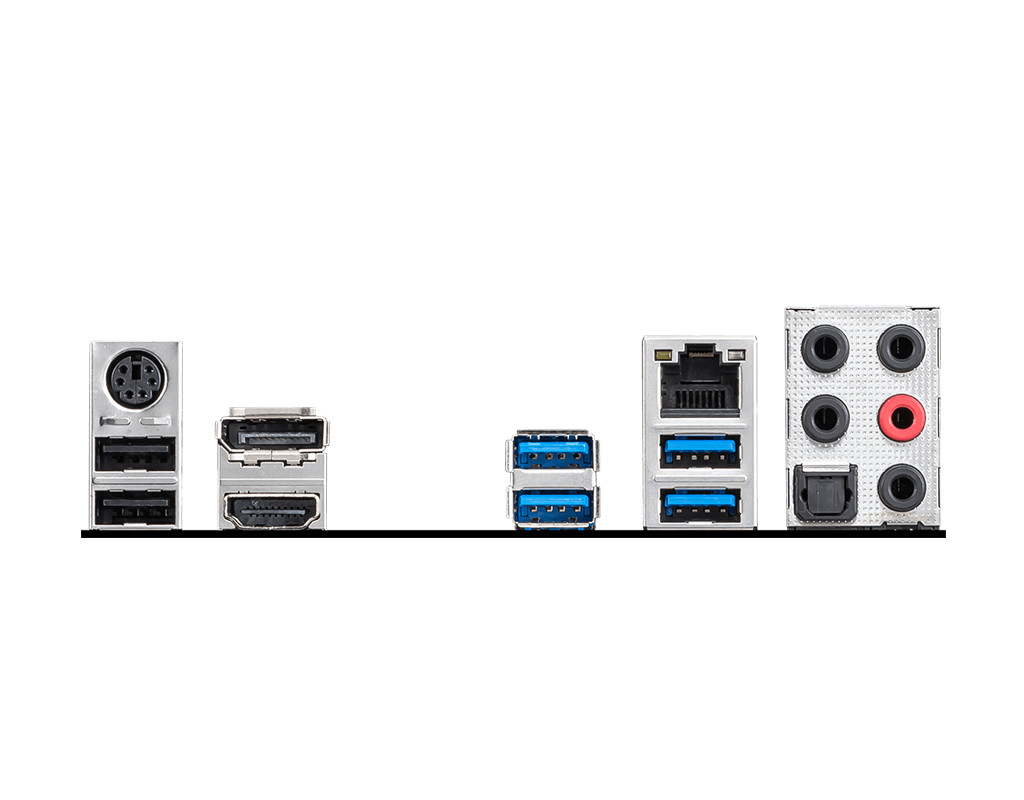

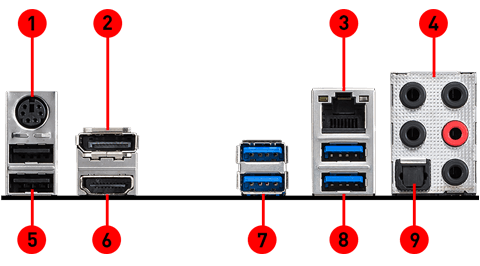

BACK PANEL PORTS
- Keyboard / Mouse
- DisplayPort
- 2.5G LAN Port
- HD Audio Connectors
- USB 2.0
- HDMI
- USB 3.2 Gen 1 5Gbps Type-A
- USB 3.2 Gen 1 5Gbps Type-A
- Optical S/PDIF OUT
LED FEATURES
- 1x EZ LED Control switch
- 4x EZ Debug LED
I/O CONTROLLER
NUVOTON NCT6687 Controller Chip
HARDWARE MONITOR
- CPU/System temperature detection
- CPU/System fan speed detection
- CPU/System fan speed control
FORM FACTOR
- ATX Form Factor
- 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
BIOS FEATURES
- 1x 128 Mb flash
- UEFI AMI BIOS
- ACPI 6.2, SM BIOS 3.2 ∙Multi-language

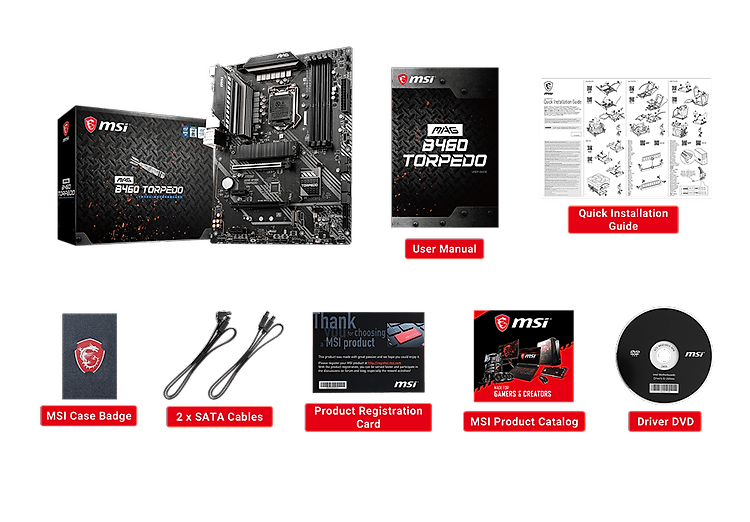

BOX CONTENT
